Wireless ________________________________________ Standard IEEE802.11 ax/ac/n/g/b/a MIMO MU-MIMO Wireless speed 2.4GHz: 575 Mbps 5GHz: 2400 Mbps Frequency band 2.4 GHz: USA (FCC): 2.412 to 2.462 GHz Europe (ETSI): 2.412 to 2.472 GHz 5 GHz: USA (FCC): 5.15 to 5.35 GHz; 5.470 to 5.850 GHz European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz Bandwidth 20-, 40- ,80- and 160-MHz Conducted typical transmit output power*1 US (2.4GHz/5GHz): 23/23 dBm EU (2.4GHz/5GHz): 19/23 dBm RF Design ________________________________________ Antenna type Internal Antenna Antenna gain 2.4 GHz: 3 dBi, 2X2:2SS 5 GHz: 4 dBi, 2x2:2SS Minimum receive sensitivity Min. Rx sensitivity up to -99 dBm WLAN Feature ________________________________________ Band steering Yes WDS/Mesh*2 Yes Fast roaming Pre-authentication, PMK caching and 802.11r/k/v DCS Yes Load balancing No Advanced Cellular Coexistence Yes Security ________________________________________ Encryption WPA WPA2 WPA3 Authentication IEEE 802.1X RADIUS anthentication Access management L2-isolation MAC filtering Rogue AP detection Networking ________________________________________ IPv6 Yes VLANs Yes WMM Yes U-APSD Yes Management ________________________________________ Operating mode Nebula cloud managed Controller-managed Standalone ZON Utility Discovery of Zyxel switches, APs and gateways Centralized and batch configurations: IP configuration IP renew Device reboot Device locating Web GUI access Firmware upgrade Password configuration Web UI/CLI Yes SNMP No Physical Specifications ________________________________________ Item Dimensions (WxDxH)(mm/in.) 173 x 97 x 29 / 6.81 x 3.82 x 1.14 Weight (g/lb.) 310/0.68 Packing Dimensions (WxDxH)(mm/in.) 195 x 120 x 53 / 7.68 x 4.72 x 2.09 Weight (g/lb.) 483/1.06 Included accessories Multi-purpose mounting bracket with screws Optional accessories (Sold separately) WAC500H-DMNT10F: Desktop mount Kit (10 sets) MTBF (hr) 750,816 Physical Interfaces ________________________________________ Ethernet
- Il punto di accesso AX3000 (2x2: 2 in 2.4 GHz e 5 GHz) alimentato da PoE fornisce una velocità massima di 3000 Mbps con un supporto per canali da 160 MHz per consentire una connettività trasparente e più veloce

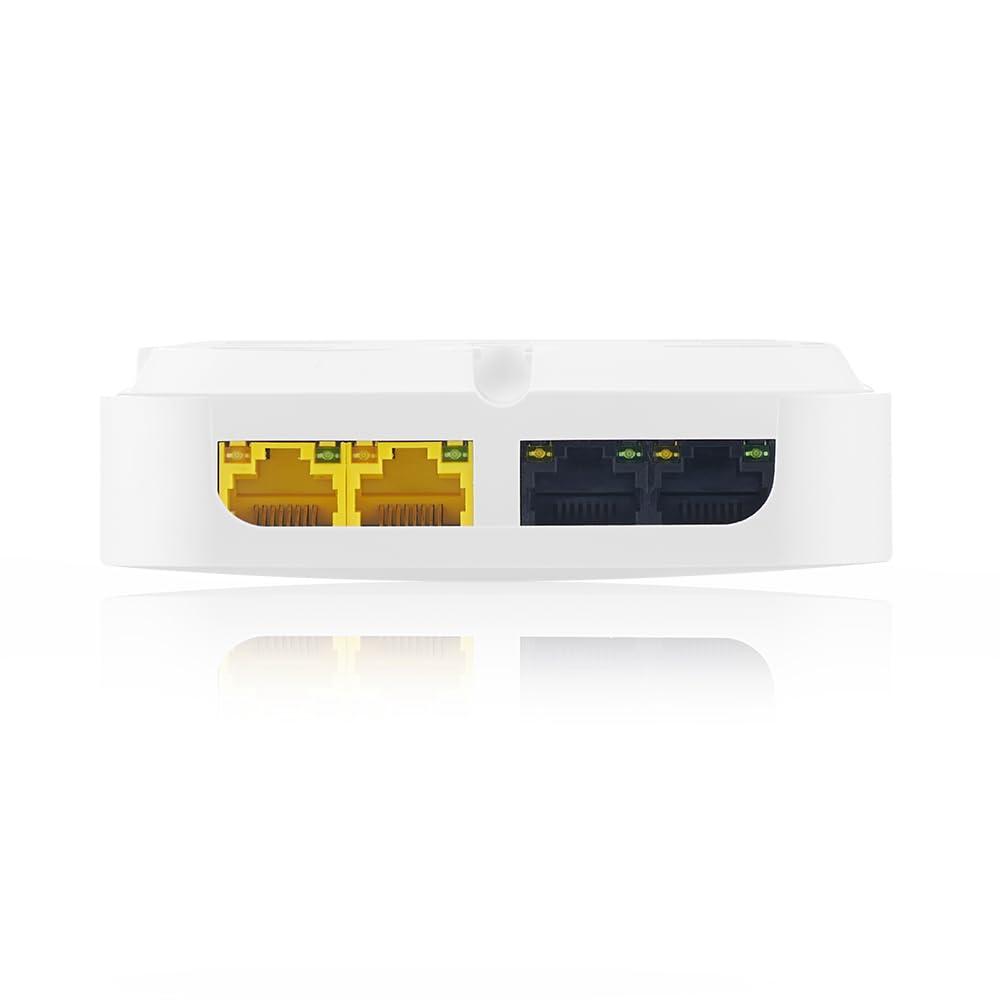

- 4 porte Gigabit Ethernet (1 porta 802.3at uplink + 3 porte LAN) inclusa una porta PSE discendente che supporta l'alimentazione PoE 802.3at (5 W) per applicazioni cablate

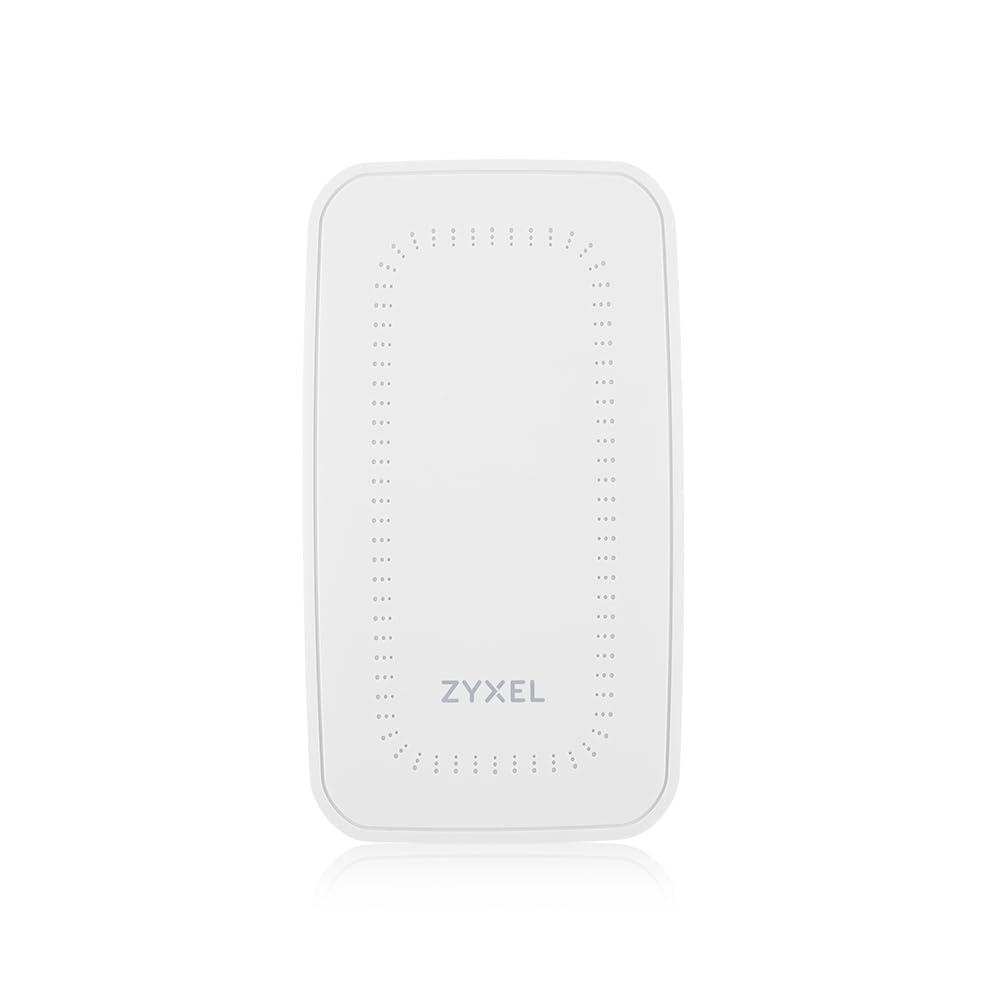

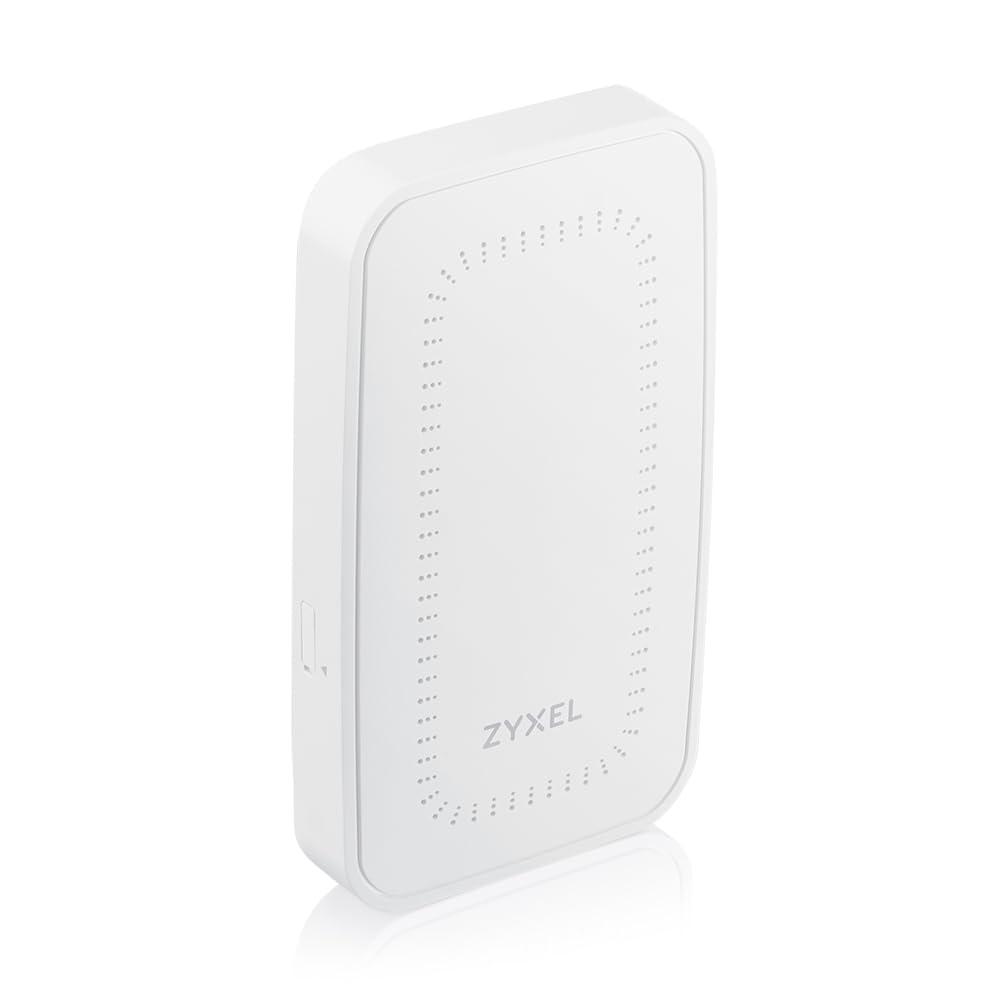

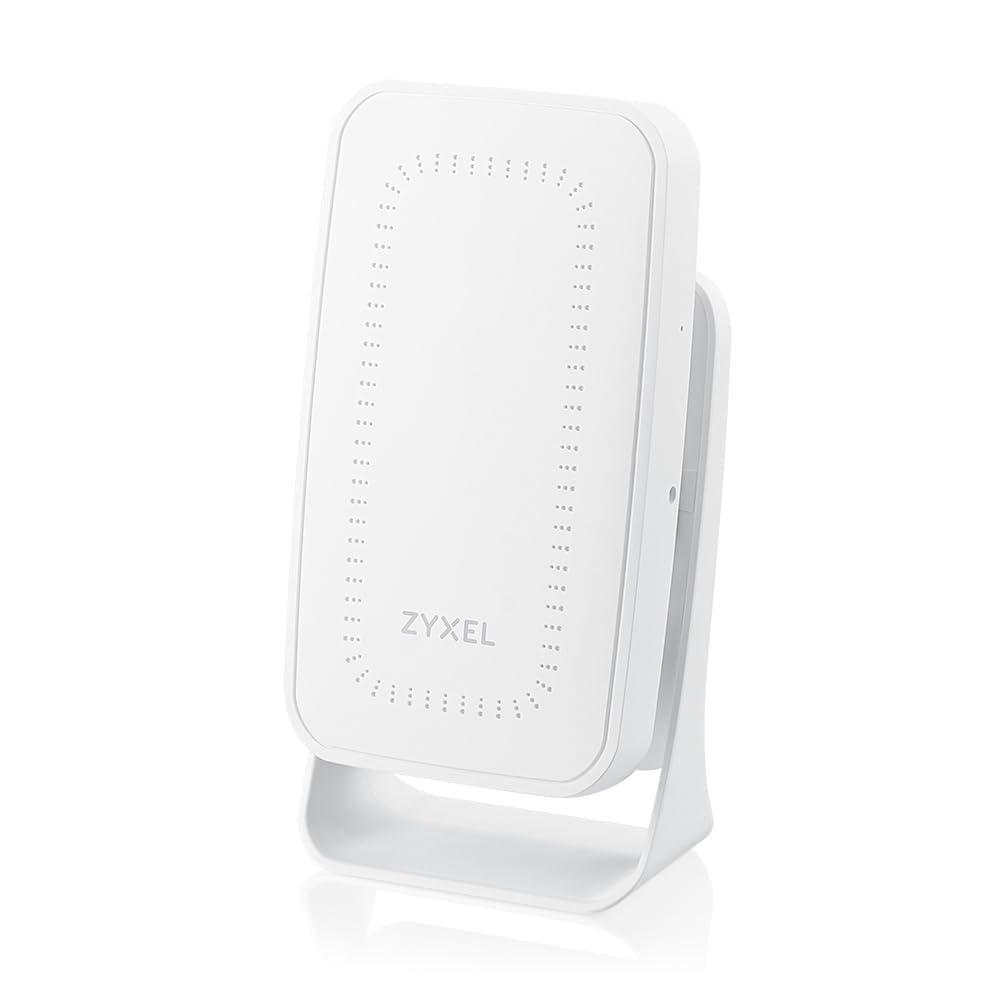

- Il design versatile dell'AP a parete che può essere montato su piastre a muro o direttamente in qualsiasi luogo.
- NebulaFlex Pro consente agli utenti di passare dalla modalità standalone, dalla modalità controller on-site o dalla modalità intuitiva gestita nel cloud Nebula, a seconda delle esigenze
- Nebula in base alle esigenze
